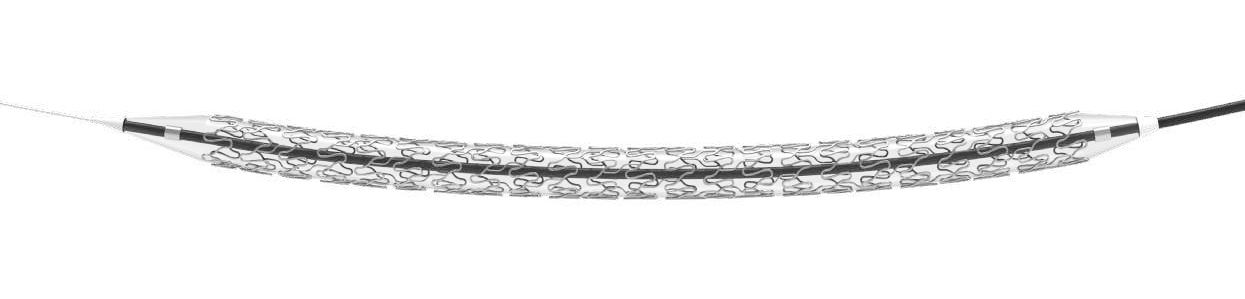

Stenoflex, a next-generation Sirolimus-Eluting Coronary Stent System, is designed to enhance patient outcomes through its superior flexibility, ultra-thin strut thickness (65µm), and optimized drug release kinetics. Engineered with a combination of Closed & Open Cell Design, Stenoflex offers exceptional crossability, uniform vessel coverage, and long-term efficacy for interventional cardiologists worldwide.
Manufactured at Kamal Medtech’s state-of-the-art 50,000 sq. ft. facility, Stenoflex adheres to the highest international quality standards, delivering precision, reliability, and long-term success in coronary interventions.
A clinical study conducted between October 2020 and August 2021 assessed the performance of Stenoflex in 193 patients with coronary artery disease. The study demonstrated low rates of major adverse cardiac events (MACE) and excellent long-term outcomes.
The optimum and meticulously arranged cells and connectors which offers good flexibility, enabling the stent to navigate through the most tortuous coronary arteries.
The spatial arrangement of the cells, on uniform expansion contributes to ideal space for side branch access minimizing the risk of arterial injury
| Design: | Combination of Closed & Open Cell Design | ||
|---|---|---|---|
| Material: | Cobalt Chromium (CoCr) L605 | ||
| Length (mm): | 8, 13, 16, 20, 24, 28, 32, 36, 40, 43 & 47 | ||
| Diameter (mm): | 2.00, 2.25, 2.50, 2.75, 3.00, 3.50, 4.00 & 4.50 | ||
| Strut Dimensions: | Thickness: 65 µm I Strut: 70 µm | Connector: 50 µm | ||
| Nominal Pressure (NP): | 9 atm | ||
| Rated Burst Pressure (RBP): | 16 atm | ||
| Foreshortening: | Nearly Zero | ||
| Recoil: | <_5% | ||
| Crossing Profile: | Nearly 1.00 mm | ||
| Min. Guidewire Diameter: | 0.014” | ||
| Min. Guiding Catheter I.D.: | 5 Fr Compatible | ||
| Radial Strength: | Excellent | ||
| Flexibility: | Excellent | ||
| DIA (mm) | 8 | 13 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 43 | 47 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.00 | SF20008 | SF20013 | SF20016 | SF20020 | SF20024 | SF20028 | SF20032 | SF20036 | SF20040 | SF20043 | SF20047 |
| 2.25 | SF22508 | SF22513 | SF22516 | SF22520 | SF22524 | SF22528 | SF22532 | SF22536 | SF22540 | SF22543 | SF22547 |
| 2.50 | SF25008 | SF25013 | SF25016 | SF25020 | SF25024 | SF25028 | SF25032 | SF25036 | SF25040 | SF25043 | SF25047 |
| 2.75 | SF27508 | SF27513 | SF27516 | SF27520 | SF27524 | SF27528 | SF27532 | SF27536 | SF27540 | SF27543 | SF27547 |
| 3.00 | SF30008 | SF30013 | SF30016 | SF30020 | SF30024 | SF30028 | SF30032 | SF30036 | SF30040 | SF30043 | SF30047 |
| 3.50 | SF35008 | SF35013 | SF35016 | SF35020 | SF35024 | SF35028 | SF35032 | SF35036 | SF35040 | SF35043 | SF35047 |
| 4.00 | SF40008 | SF40013 | SF40016 | SF40020 | SF40024 | SF40028 | SF40032 | SF40036 | SF40040 | SF40043 | SF40047 |
| 4.50 | SF45008 | SF45013 | SF45016 | SF45020 | SF45024 | SF45028 | SF45032 | SF45036 | SF45040 | SF45043 | SF45047 |
